Bedienungsanleitung Kenwood TS-140 S – Manual

Kenwood ts 140 s

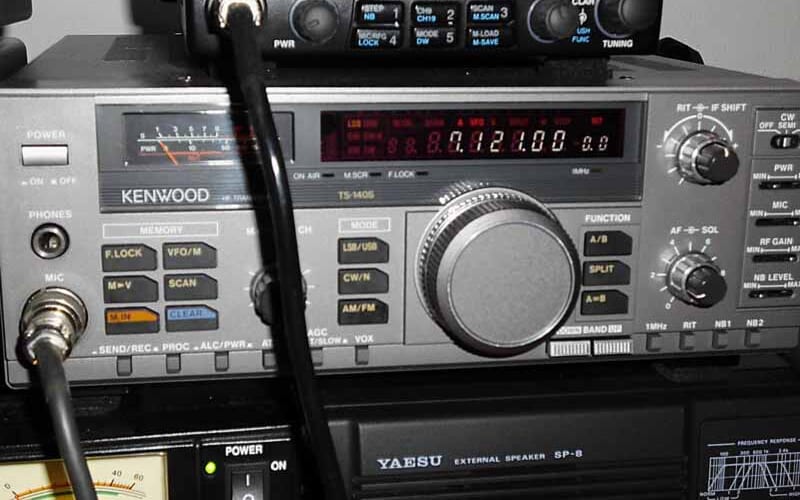

Der Kenwood TS-140S ist ein Hochleistungs-KW-Transceiver für SSB, CW, AM and FM auf allen Amateurbändern (160-10 Meter).
Dieses kompakte und leichtgewichtige Funkgerät deckt den kompletten Bereich von 500 kHz to 30 MHz ab.
Die 2 digitalen 10-Hz-Schritt-Digital-VFOs arbeiten unabhängig voneinander. 31 Speicherkanäle können im CW-Modus Frequenz-, Modus- und Schmalband-Informationen speichern. 10 Speicherkanäle (CH10 bis CH19) speichern Sende- und Empfangsfrequenzen unabhängig voneinander und ermöglichen so den Betrieb von Repeatern oder Split-Frequenzen. 11 Speicherkanäle (CH20 bis CH30) legen die oberen und unteren Grenzen für das Bandabtasten fest. Die Scan-Geschwindigkeit ist einstellbar. Weitere Verfeinerungen sind: IF Shift, RIT, VFO Tuning, Drehmomenteinstellung, Multifunktionsmesser, Sprachprozessor, zahlreiche I/O-Buchsen und HF-Abschwächer.

Werbung

SPECIFICATIONS
GENERAL
Type: Amateur HF/VHF transceiver
Frequency range: TX: 10-160 m + WARC
RX: 0.5-30 MHz
Tuning steps: 10 / 100 Hz
9 / 10 KHz
1 MHz
Mode: AM/FM/SSB/CW
Channels/memory management: 10 regular
10 split
10 band marker
1 scan edges
Lithium battery backup
Repeater shift/offset: No dedicated. Use VFO A/B split or memory split instead
Power supply: 12-16 VDC
Current drain/power consumption: RX: 1.5 A (no signal)
TX: Max 20 A
Antenna impedance/connector: 50 ohms / SO-239
Dimensions (W*H*D): 270*96*270 mm (10.6*3.8*10.6″)
Weight: 6.1 Kg (13.45 lbs)
Other features:
RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 40.055 MHz
2nd IF: 455 KHz
Sensitivity: AM (10 dB S/N)
0.5-1.6 MHz: 39.8 uV
1.6-21.5 MHz: 2.5 uV
21.5-30 MHz: 2.5 uV

FM (12 dB SINAD)
21.5-30 MHz: 0.35 uV

SSB/CW (10 dB S+N/N)
0.5-1.6 MHz: 4 uV
1.6-30 MHz: 0.25 uV

Selectivity: AM
6 KHz (-6 dB), 18 KHz (-50 dB)

FM
12 KHz (-6 dB), 25 KHz (-50 dB)

SSB/CW
2.2 KHz (-6 dB), 4.4 KHz (-60 dB)

Image rejection: -50 dB
AF output power/speaker: 1.5 W at 10% distortion / 8 ohms
External speaker connector: 3.5 mm, 8-16 ohms
TRANSMITTER SECTION
RF output power: AM: 40 W
FM: 50 W
SSB/CW: 100 W
Modulation system: AM: Low level
FM: Reactance
SSB: Balanced
Max FM deviation: ±5 KHz
Spurious emissions: HF: Less than -40 dB
6 m: Less than -60 dB
Microphone impedance/connector: 500 ohms to 50 Kohm / 8-pin
MISCELLANEOUS
Manufactured: Japan, 1987-199x (Discontinued)
Additional info: New price 1988 in Sweden: 9500:- SEK
Related documents: User manual (42 MB)
Modifications:
Options/Accessories:
AT-130
AT-250
HS-5
HS-6
HS-7
IF-10C
IF-232C
LF-30A
MA-5
MB-430
MC-43S
MC-55
MC-60A
MC-80
MC-85
PC-1A
PG-2S
PS-50
PS-430
SM-220
SP-41
SP-50B
SP-430
TU-8
VP-1
YG-455C-1
YK-455C-1
Antenna tuner, 10-80 m
Automatic antenna tuner, 10-160 m
Communications headphones, 8 ohms
Communications headphones, 12.5 ohms
Micro headphones, 16 ohms
Interface kit
RS-232C interface
Low pass filter
5-band helical HF mobile antenna
Mobile mount
Hand microphone, dynamic with up/down switches
Hand microphone with up/down switches and 5 minute timer
Desk microphone
Desk microphone, electret condenser type
Desk microphone, electret condenser type with filters and level meter
Phone patch with VU-meter
DC power cable
Heavy duty power supply, 13.8 VDC, 20 A. Built-in cooling fan
Regulated power supply, 13.8 VDC, 20 A (intermittent)
Station monitor
External mobile speaker, 4 ohms
External mobile speaker, 8 ohms
External speaker
Tone encoder unit. 38 tones selectable by dip-switches
Bumper mount for MA-5
CW filter, 500 Hz
CW filter, 500 Hz
